Description

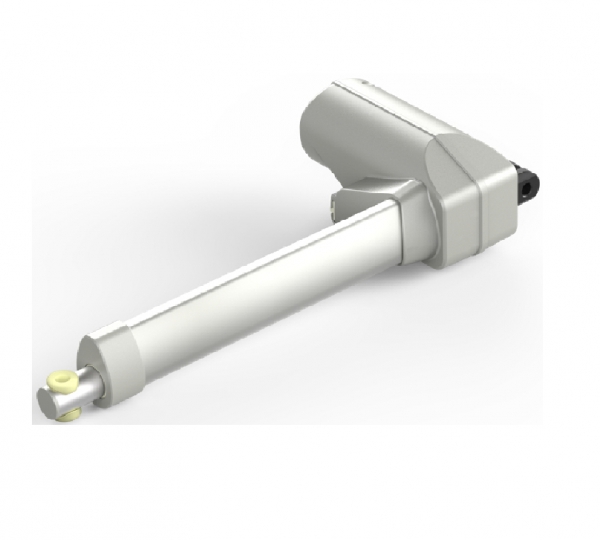

TMMK31 is a quiet and powerful actuator up to 6000N thrust, designed for use in medical bed application.
Technical information
· Input voltage: 24V DC
· Max. load: 6000N (Push) / 3000N (Pull)
· Typical speed at no load: 5.5mm/sec
· Typical speed at full load: 3.8mm/sec (6000N load)
· Stroke: 50 ~ 400mm
· Noise level: ≦50dB
· IP level: IPX6
· Preset limit switches
· Aluminum outer tube
· Detachable cable plug
· Color: Light gray RAL 7035
· Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
· Operating ambient temperature: +5°C ~ +40°C
Option
· Positioning signal feedback with Hall effect sensor x 2
· Safety nut (in push direction)
· Mechanical push only extension tube
